Multi-sliding-GL-106-3L3R

System Overview:
The GL-106-3L3R is an advanced Slim Frame multi-sliding system designed without a bottom profile, allowing all panels to move smoothly to both the right and left. The system delivers open views and full utilization of the opening width, making it an ideal architectural solution for wide façades and commercial projects requiring flexibility, modern aesthetics, and high-performance operation.

Engineering Configuration:
The system is manufactured using high-quality aluminum profiles with a Slim Frame design and operates with a multi-track sliding mechanism supported by a fully top-hung load configuration, ensuring balanced load distribution and panel stability.

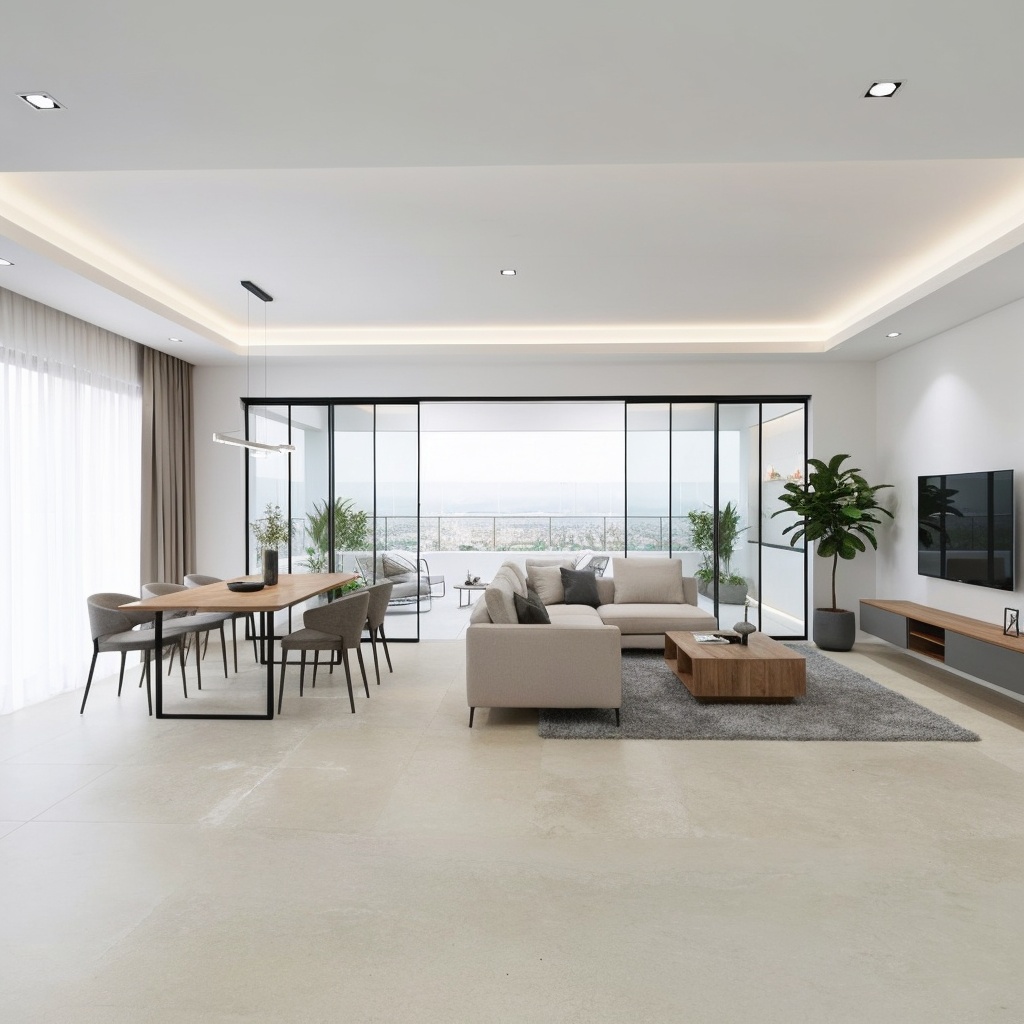

The façade consists of six panels arranged as three panels on the right side and three panels on the left side, allowing flexible partial or full opening depending on usage requirements.
The system is based on an integrated belt-driven mechanism that connects all panels together, enabling all panels to move simultaneously when any single panel is pulled, rather than relying on a traditional sequential dragging system. This ensures synchronized movement, smooth operation, and balanced response across the entire façade.
The system is fitted with single glazing, providing lightweight operation and clear visibility while maintaining reliable performance.
All tracks are integrated within the upper profile, with three internal top tracks as a standard configuration, and the option to increase or reduce the number of tracks based on site dimensions and design requirements.
No bottom profile is used. Each panel is supported by a bottom guide equipped with a circular roller that functions solely as a guiding and stabilizing element, ensuring precise alignment and smooth sliding without any load-bearing function.
The system offers full flexibility in customizing the glass type, number of panels, number of tracks, profile heights, and handle positions, in accordance with client requirements and site conditions, while maintaining structural performance, smooth operation, and approved safety and insulation standards.

Accessories:
All accessories are manufactured entirely from high-quality aluminum and include a soft-close system for smooth and quiet operation, an internal belt-driven synchronization system, fully concealed hardware, full-height sealing brushes, and integrated handles within the panel thickness.
Handle finishes are treated with electrostatic coating matching the façade color to ensure durability and visual consistency.

Safety and Insulation:
The system is equipped with full rubber sealing around the glass, along with sealing brushes that prevent dust and insect infiltration. It provides tight closure, safe operation, and smooth performance even with large and heavy panels.

Optional Folding Mesh System:
The façade can be equipped with an aluminum folding mesh system featuring fine ventilation openings and a folding mechanism. The mesh includes a perimeter brush and a central locking system for opening and closing, allowing natural ventilation while preventing insects and maintaining privacy without affecting panel movement or overall appearance.

Areas of Use:
Mall façades
Commercial projects
Restaurants and cafés
Villas with wide openings

Maintenance and After-Sales Service:
The system features easy maintenance with readily available spare parts, supported by professional technical support and after-sales service backed by extensive experience in large-scale projects. The system includes a paint warranty of up to 25 years only, ensuring long-term color stability and finishing quality.
