Multi-sliding-GL-104-107-5L-PB

System Overview:

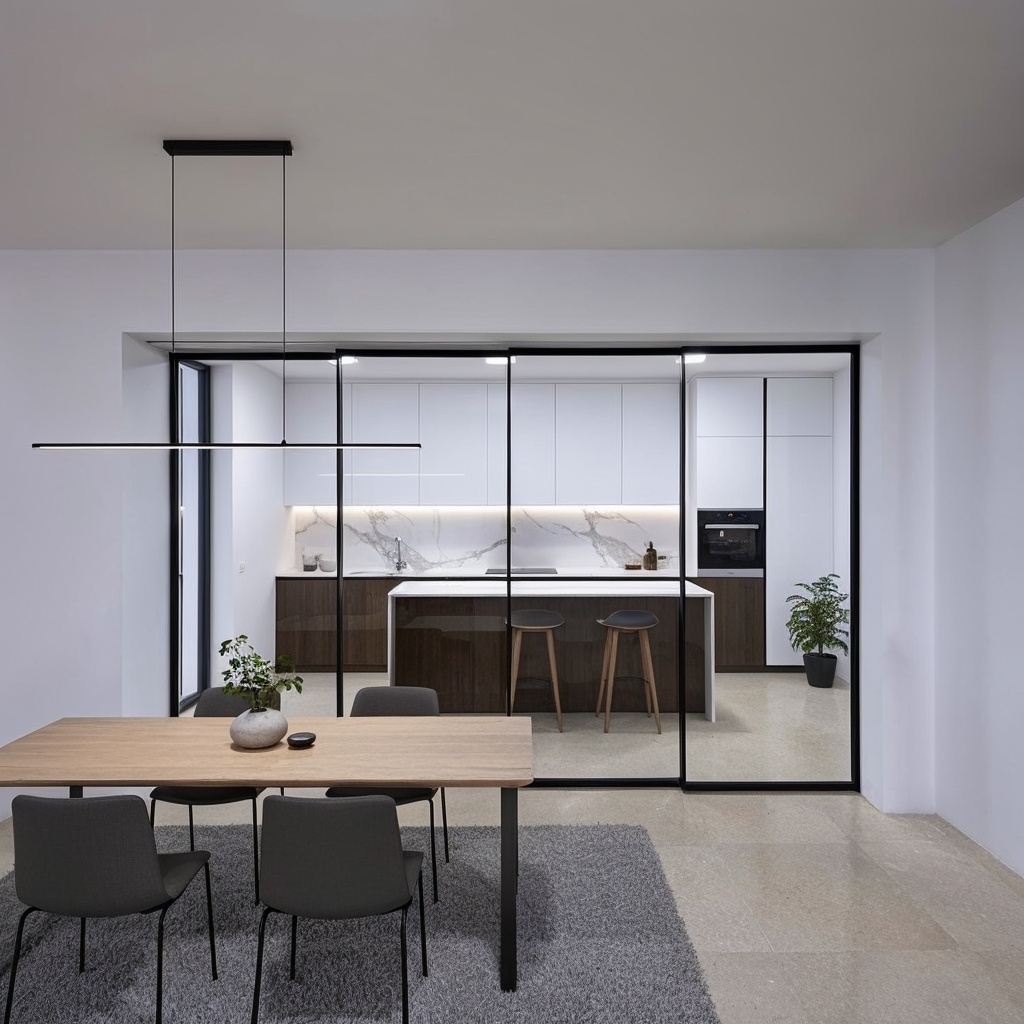

The Multi Sliding Pocket System is an advanced architectural solution designed to fully conceal sliding glass panels inside a dedicated wall pocket. When fully opened, the facade completely disappears into the wall, creating a fully open space with no visible panels or floor tracks.

Engineering Configuration:
The system is manufactured using high-quality slim aluminum profiles and operates with a sequential sliding mechanism that allows each panel to slide smoothly into the wall pocket. The system consists of five fully movable panels, with the option to increase or reduce the number according to site requirements. Single glazing is used.
All loads are carried by individual upper tracks integrated within the top structure, with no floor track or bottom profile.
The system incorporates an internal belt-driven mechanism that links all panels together, allowing synchronized movement so that all panels move simultaneously when any single panel is operated. This ensures smooth, balanced operation and eliminates the need to move each panel individually.
Glass type, number of panels, profile heights, and handle positions are fully customizable based on site conditions and client requirements.

Accessories:
All accessories are manufactured from high-quality aluminum and include top-hung sliding mechanisms, bottom guide wheels for alignment only, and a soft-close system.
A high-strength belt system is integrated within the upper track, transmitting motion between panels and ensuring synchronized sliding during opening and closing.
Recessed integrated handles are concealed within the panel thickness to maintain a clean architectural appearance.

Safety and Insulation:
The system is equipped with sealing systems between panels to ensure stable movement and reduce dust infiltration when closed. The facade provides safe, balanced operation with stable panel alignment, while the trackless floor design enhances safety and accessibility.

Optional Folding Aluminum Mesh System:
The facade can be equipped with an optional folding aluminum mesh system that allows natural ventilation, prevents insects, and maintains privacy without affecting the sliding movement or pocket operation.

Areas of Use:
Luxury villas, modern residential projects, living rooms and open-plan spaces, and commercial architectural facades.

Maintenance and After-Sales Service:
Easy maintenance, readily available spare parts, and professional technical support backed by extensive experience in complex architectural systems, with a paint warranty of up to 25 years only.
