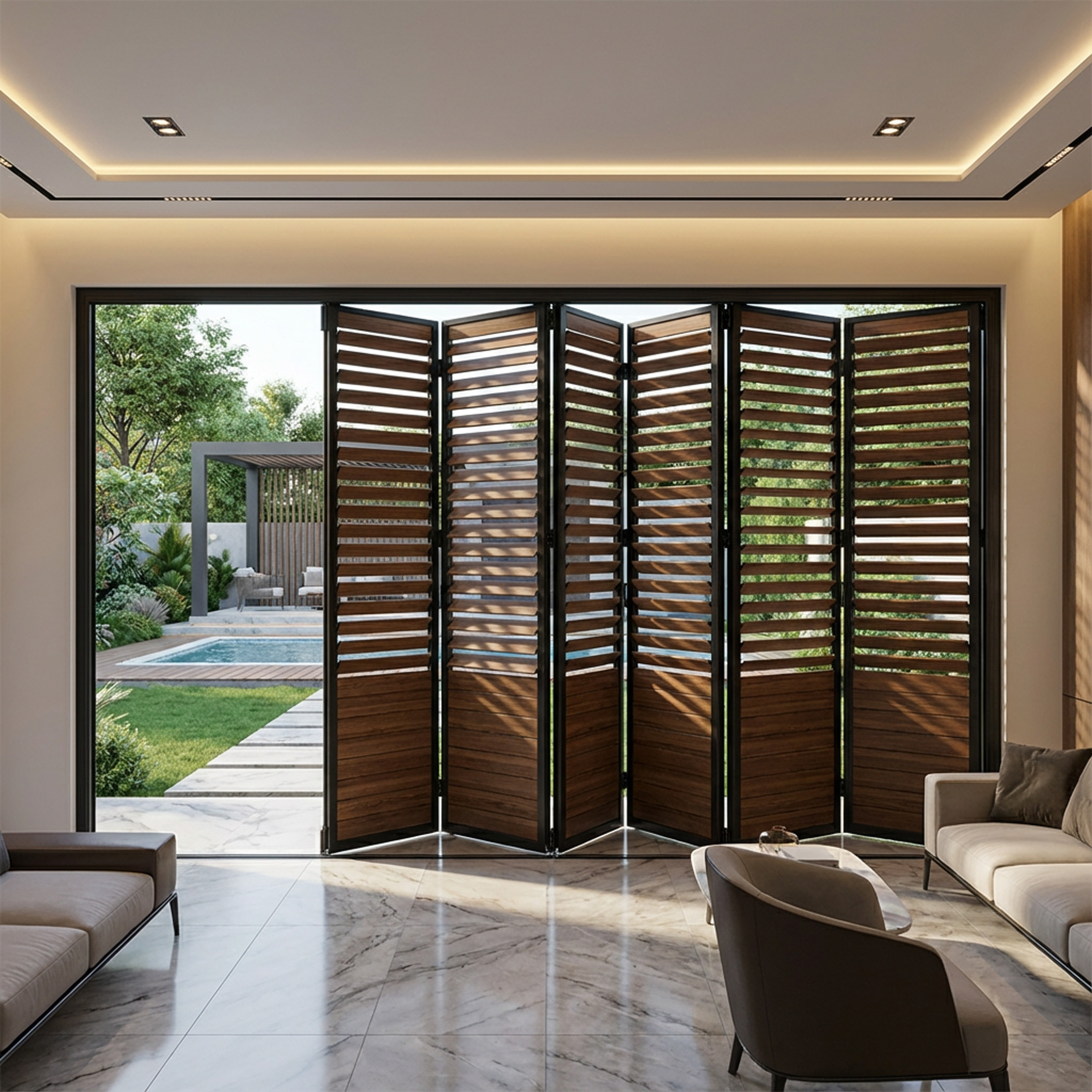

Folding-GL-115 ULH 6L louver

System Overview:
A movable aluminum louver facade system representing an advanced solution in smart facade technologies. The system provides precise control over light and airflow while maintaining a modern architectural appearance and high operational flexibility. It can be used as a standalone facade or integrated with pergola systems and glass facades, offering full control over privacy, ventilation, and natural lighting.

Engineering Configuration:
The system is manufactured using high-quality slim aluminum profiles and operates with a folding mechanism utilizing aluminum louver units instead of glass. It consists of six panels, incorporating fixed lower louver units across the full facade width and movable upper louver units operating through a dedicated movement mechanism. The movable upper louvers are connected via a unified side mechanism that allows controlled upward rotation to regulate light and airflow. Each louver unit is center-fixed on both sides within an additional slim aluminum profile to ensure maximum stability and durability. The system is top-hung and guided by a concealed bottom guide with circular wheels for smooth alignment. The number of panels, louver units, and the ratio between fixed and movable elements are fully customizable according to site conditions and project requirements.

Accessories:
The system includes three handles and three locking bolts distributed across the panels. The main panel carries the locking bolt, while the adjacent panel features dedicated receiving slots within the upper profile. Upper and lower hinges are installed between each pair of panels to ensure smooth operation and load resistance. All accessories are designed for outdoor use, fully concealed within the profiles, and finished to match the facade color.

Safety and Insulation:
A bottom sealing element is installed beneath each panel to reduce dust and insect infiltration and enhance insulation performance. The louver design allows airflow without compromising safety or privacy. Where higher insulation levels are required, the system can be executed with a visible floor profile based on project needs.

Recommended Applications:
Modern pergolas, villa and rooftop facades, commercial facades, cafés and restaurants, outdoor living spaces, and integration with glass facades for comprehensive environmental control.

Maintenance and After-Sales Service:
Easy maintenance, full availability of spare parts, and a paint warranty of up to 25 years only, supported by professional technical support and after-sales service backed by extensive experience in large-scale projects.
