Folding-GL-115-U-4R1L

System Overview:
The GL-115-U-4R1L is an advanced Slim Frame folding system that combines one hinged fixed panel with multiple folding panels, offering high operational flexibility with excellent sealing and insulation performance. This configuration allows partial or full opening depending on usage needs, while maintaining a refined architectural appearance and open visibility. The system is suitable for residential and commercial spaces that require both functionality and modern design.

Engineering Configuration:
The system is manufactured using high-quality aluminum profiles with a Slim Frame design and operates with a folding movement mechanism supported by a top-hung load configuration mounted on a track.

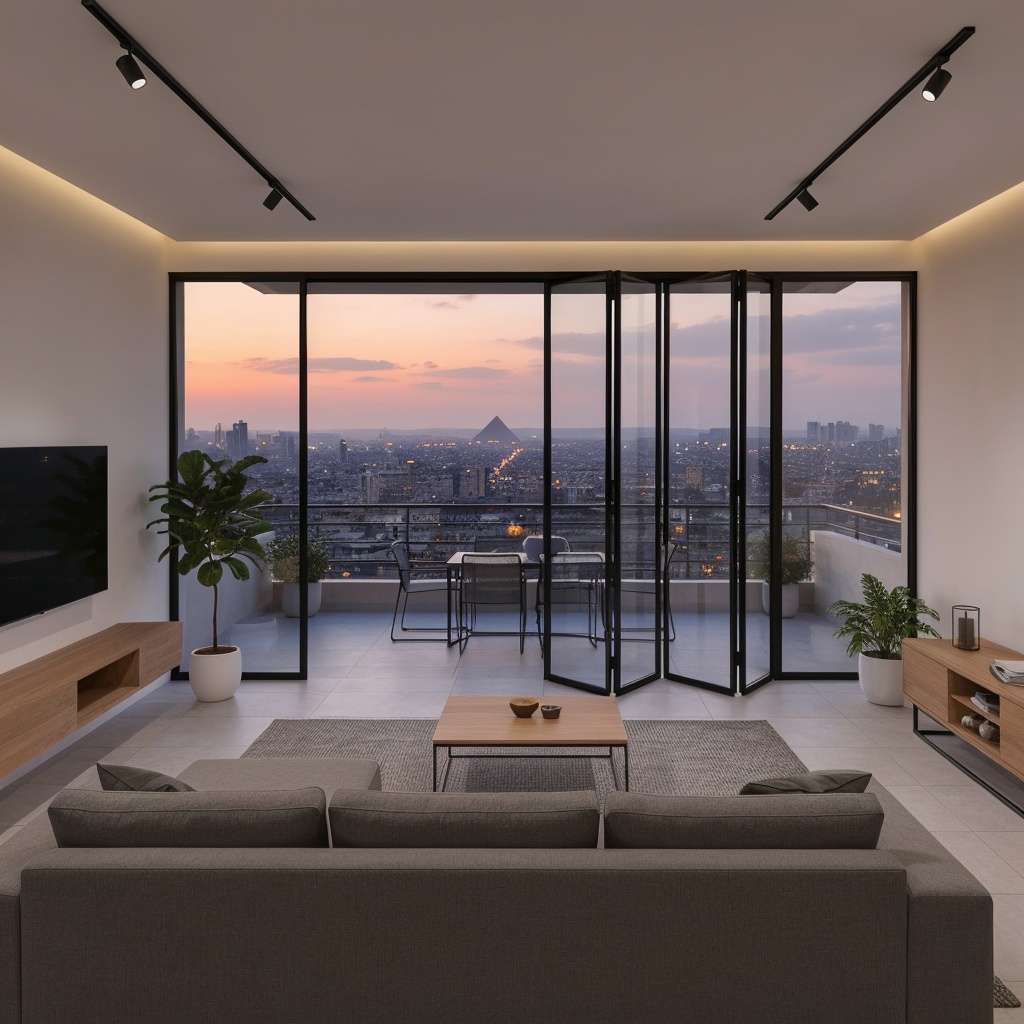

The façade consists of five panels arranged as follows: one left-side panel fixed with side hinges serving as an access and control point, and four right-side panels operating as a multi-directional folding system that allows gradual or full opening of the façade.
The movement mechanism relies entirely on top-hung loading, ensuring smooth operation even with multiple panels, while maintaining stability and preventing vibration during opening and closing.
The system is fitted with single glazing, providing lightweight operation and clear visibility while maintaining reliable performance.
The system offers full flexibility in customizing the glass type, number of panels, profile heights, and handle positions, in accordance with client requirements and site conditions, while maintaining structural performance, smooth operation, and approved safety and insulation standards.

Accessories:
All accessories are manufactured entirely from high-quality aluminum and include a full aluminum profile system, three side hinges for the left hinged panel, top and bottom locking bolts for enhanced sealing, integrated internal and external handles, and a floor sealing brush along the full width of the façade.
The system also supports a rear folding mesh track, with handle finishes treated using electrostatic coating matching the façade color to ensure visual consistency.

Safety and Insulation:
The system is equipped with rubber sealing between the glass and profiles, as well as between adjacent panels, providing complete protection against air and dust infiltration. The design ensures safe operation during opening and closing, with stable and controlled movement for daily use.

Optional Folding Mesh System:
The façade can be equipped with an aluminum folding mesh system featuring fine ventilation openings and a folding mechanism. The mesh includes a perimeter brush and a central locking system for opening and closing, allowing natural ventilation while preventing insects and maintaining privacy without affecting panel movement or overall design.

Areas of Use:
Villa façades
Reception areas
Commercial projects
Custom designs based on site requirements

Maintenance and After-Sales Service:
The system features easy maintenance with readily available spare parts, supported by professional technical support and after-sales service backed by extensive experience in large-scale projects. The system includes a paint warranty of up to 25 years only, ensuring long-term color stability and finishing quality.
