Folding balcony -GL-115-B-2R2L

System Overview:

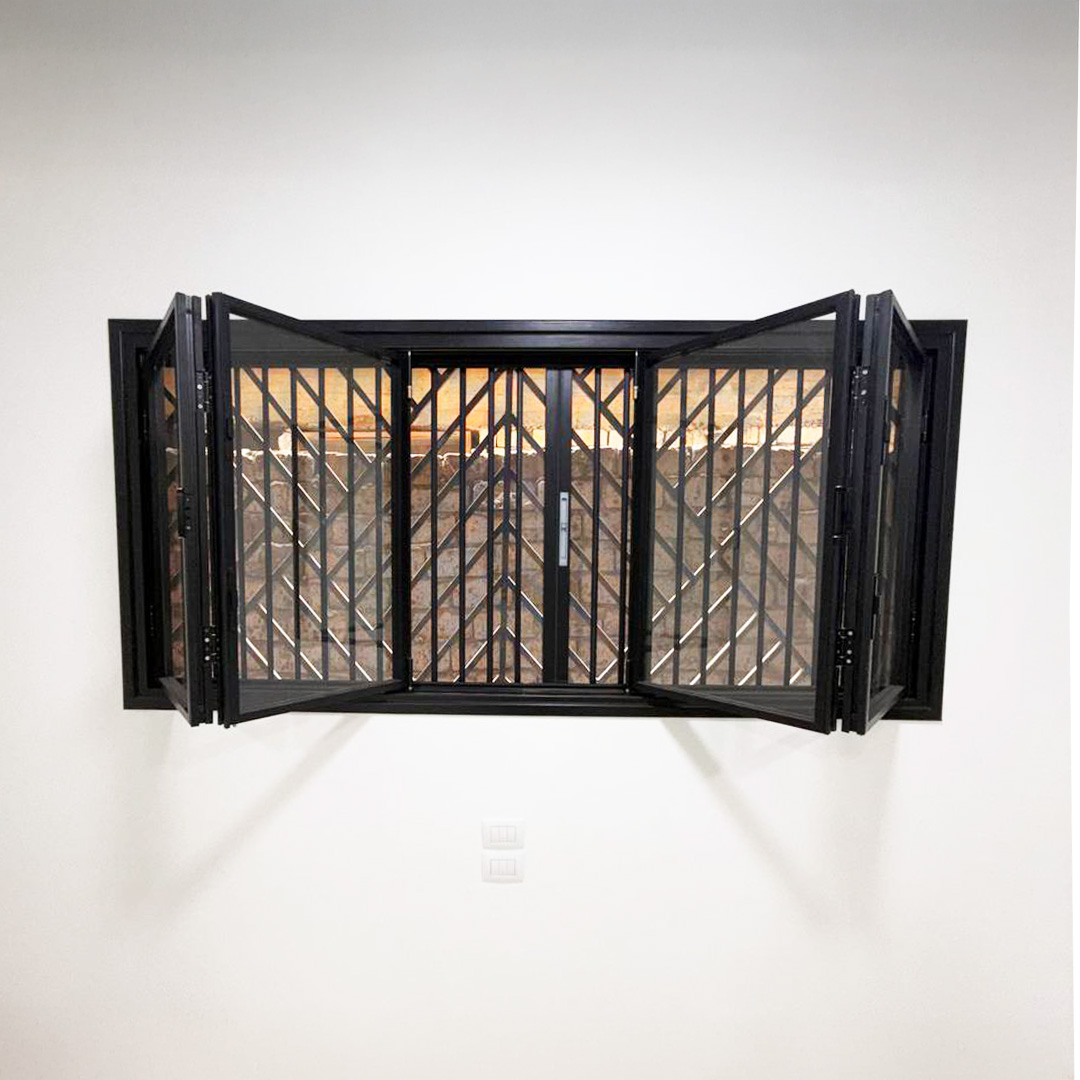

The GL-115-B-2R2L is a Slim Frame folding window system designed for wide openings. The system divides the panels into right and left groups and operates with folding movement only, without any sliding mechanism. It provides a stable and secure architectural solution for elevated window applications, while maintaining open views, effective ventilation, and a modern appearance suitable for residential and commercial use.

Engineering Configuration:
The system is manufactured using high-quality aluminum profiles with a Slim Frame design and operates with a folding-only mechanism supported by a top-hung load configuration mounted on a track.
The window consists of four panels arranged as two panels on the right side and two panels on the left side, allowing partial or full opening depending on ventilation requirements.
The system is fitted with single glazing, providing lightweight operation and clear visibility while maintaining reliable performance.
Primary load is carried from the top, with a bottom guide equipped with a circular roller acting as a guiding and stabilizing element only, ensuring panel alignment and precise closing without any load-bearing function.
The window is fully framed with aluminum profiles and secured with side-mounted hinges to ensure tight fixing on both sides of the opening and stable performance during opening and closing.
The system offers full flexibility in customizing the glass type, number of panels, profile heights, and handle positions, in accordance with client requirements and site conditions, while maintaining structural performance, smooth operation, and approved safety and insulation standards.

Accessories:
All accessories are manufactured entirely from high-quality aluminum and include side hinges, upper and lower hinges between panel pairs, and two handles for opening and closing control.
All accessories and fasteners are fully concealed within the profiles to preserve a clean architectural appearance, with optional support for a folding mesh system upon request.

Safety and Insulation:
The window is equipped with full rubber sealing between the glass and profiles, as well as between adjacent panels, providing effective insulation against air and dust infiltration. The design ensures high safety and stable operation during daily use.

Optional Folding Mesh System:
The window can be equipped with an aluminum folding mesh system featuring fine ventilation openings and a folding mechanism. The mesh includes a perimeter brush and a central locking system for opening and closing, allowing natural ventilation while preventing insects and maintaining privacy without affecting panel movement or overall appearance.

Areas of Use:
Balcony windows
Panoramic windows
Elevated façades
Residential and commercial windows
Suitable for indoor and outdoor applications

Maintenance and After-Sales Service:
The system features easy maintenance with readily available spare parts, supported by professional technical support and after-sales service backed by extensive experience in large-scale projects. The system includes a paint warranty of up to 25 years only, ensuring long-term color stability and finishing quality.
